939FE

939FE

  • 39,000Kg

    Operating weight

  • 250kWh

    Rated Power

  • 2.0m³

    Bucket Capacity

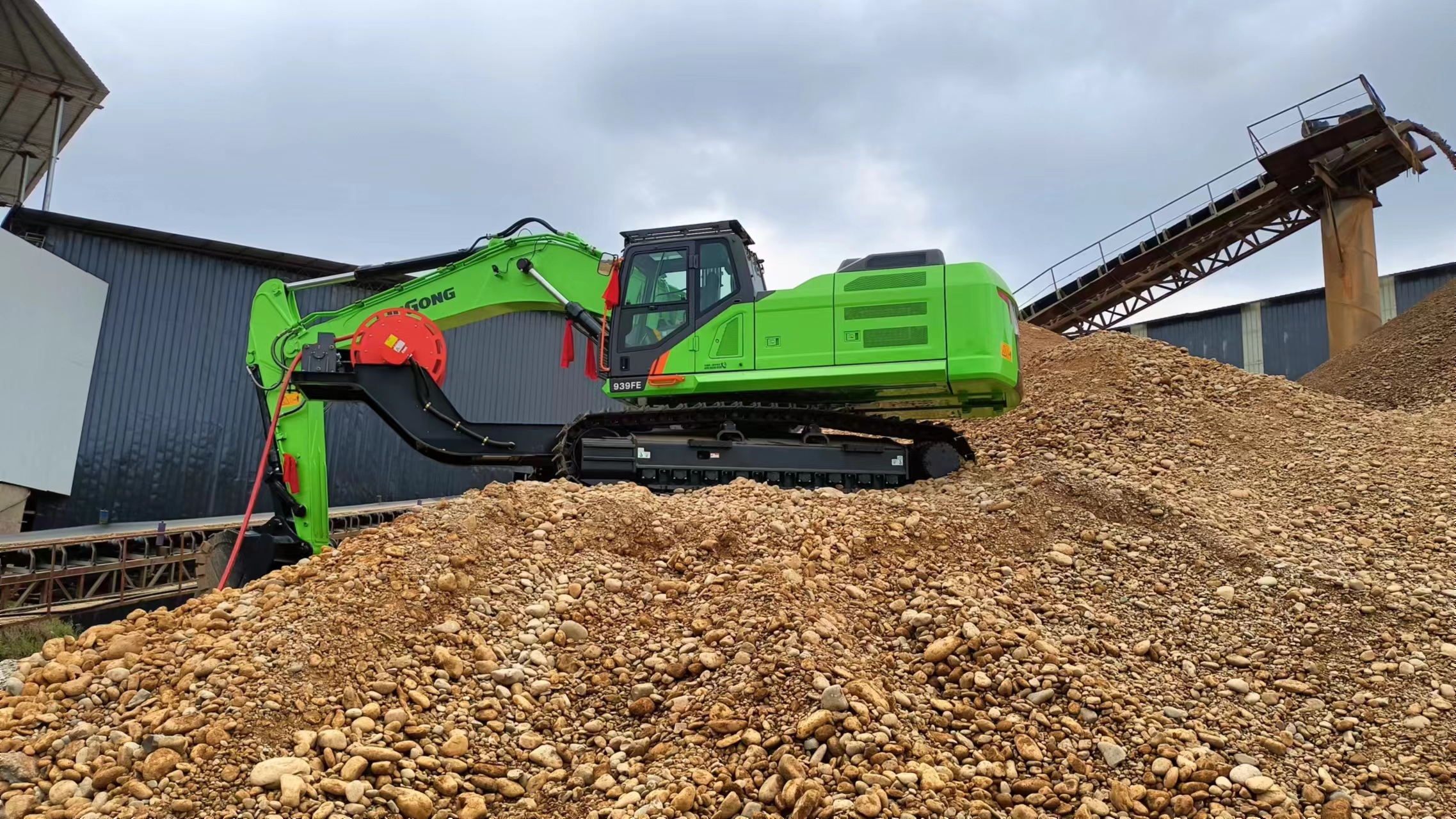

939FE Electric Excavator LiuGong Australia

939FE

Introducing the new electric excavator: revolutionizing efficiency and sustainability. This innovative excavator is designed to redefine efficiency and sustainability in the construction industry. Explore the cutting-edge technology and the transformative advantages it brings to your construction projects.

Features

Advanced Technology

Designed with cutting-edge technology, this electric excavator combines intelligent systems, precise control, and exceptional performance. It includes features like advanced hydraulic systems, and state-of-the-art electric motor technology, ensuring optimal efficiency and productivity on your site.

Remote Monitoring and Control

Our New Electric Excavator comes equipped with advanced remote monitoring and control systems, enabling real-time monitoring of machine location, diagnostics, and maintenance scheduling. This feature enhances efficiency, reduces downtime, and ensures optimized equipment performance.

Cost Savings

Electric-powered equipment offers several long-term cost benefits. The reduced reliance on fossil fuels translates into lower fuel expenses, while the simplified electric features result in reduced maintenance and operating costs. This excavator offers a cost-effective solution for your projects.

Specifications

939FE

  • Motor Type

    IPMSM

  • Maximum Dig Depth

    6,890 mm

  • Standard Bucket Capacity

    2.0 m³

  • Operating Weight

    39,000 kg

Electric System

  • Motor Type

    IPMSM

  • Rated Voltage

    AC 380 V

  • System Voltage

    AC 380 V

Undercarriage

  • Undercarriage Width

    3,190 mm

  • Number of Shoes per Side

    49

  • Number of Upper Rollers per Side

    2

  • Number of Bottom Rollers per Side

    9

Dimensions

  • Shipping Length

    11,450 mm

  • Undercarriage Width

    3,190 mm

  • Overall Width of Upper Structure

    3,163 mm

  • Shipping Height

    3,800 mm

  • Overall Height of Cab

    3,355 mm

  • Counterweight Ground Clearance

    1,250 mm

  • Min. Ground Clearance

    545 mm

  • Tail Swing Radius

    3,539 mm

  • Length to Center of Rollers

    4,140 mm

  • Track Length

    5,075 mm

  • Track Gauge

    2,590 mm

Bucket Performance

  • Std. Bucket Heaped Capacity (Referenced)

    2.0 m³

  • Max. Heaped Capacity of Bucket Options

    2.0 m³

Track Drive

  • Maximum Travel Speed

    5.5 km/h

  • Drawbar Pull

    330 kN

Working Range

  • Boom Length

    6,400 mm

  • Arm Length

    2,900 mm

  • Max. Digging Reach

    10,728 mm

  • Max. Digging Reach on Ground

    10,527 mm

  • Max. Digging Depth, 2.44 m (8’) Level

    6,710 mm

  • Max. Vertical Wall Digging Depth

    5,085 mm

  • Max. Cutting Height

    9,818 mm

  • Max. Dumping Height

    6,655 mm

  • Min. Front Swing Radius

    4,385 mm

  • Bucket Digging Force (ISO)

    255 kN

  • Arm Digging Force (ISO)

    229 kN

Hydraulic System

  • Main Pumps Total Flow

    2 x 342 L/min

  • Relief Pressure, main

    34.3 MPa

Service Capacities

  • Hydraulic System Total

    450 L

Swing System

  • Swing Speed

    10 rpm
